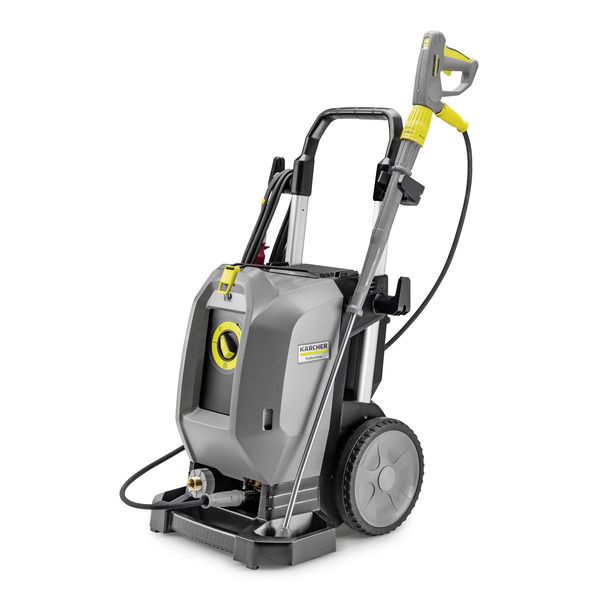

Karcher HD 10/25-4 S Cold Water Pressure Washer
Technical Specifications
| Current type | 3 / 376 – 424 / 50 Ph / V / Hz |
| Operating pressure | 80 – 250 bar |
| Flow Rate | 500 – 1000 l/h |
| Water feed temperature | 60 °C |
| Power rating | 8.8 kW |
| Nozzle size | 047 |
| Weight (with accessories) | 69.8 kg |
| Weight incl. packaging | 78.05 kg |
| Dimensions (L × W × H) | 607 x 518 x 1063 mm |
Features
Compact upright design concept based on vertical arrangement of motor and pump unit
Small footprint and space-saving proportions.
Easy to manoeuvre and transport.
Maximum stability ensures a stable footing for the machine.
4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
Long service life and low maintenance costs.
High performance and high efficiency.
With suction feature and up to 60 °C water temperature.
Intelligently designed service concept facilitates quick operations on site
Convenient oil fill level display and oil drain hole integrated in the chassis.
Modular construction, comprising pump, motor and control cabinet.
Assistance systems and LED status display
Integrated electronics system for machine monitoring.
Automatic switch-off in case of low voltage range or overvoltage.
Switches off in case of leaks or phase failure.
Wide-ranging accessories with EASY!Lock
Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
EASY!Force Advanced for fatigue-free work without any holding force.
Rotating 1050 mm stainless steel lance.
Extensive range of accessories and attachment kits
Stowage compartment.
Adjustable hooks, e.g. for storing second lance or electric cable.
Storage for high pressure hose
Applications
Ceaning tractors, machines and implements in agriculture
Cleaning machines and equipment on the building site, such as cement mixers, scaffolding, wheel loaders, diggers or concrete pumps
Cleaning production machinery in industry, such as in paint shops, in food production or in the manufacturing sector
Cleaning vehicles in transport sector, such as trucks, ships, aeroplanes or buses
Cleaning communal spaces such as public squares, driveways, fountains or car parks
What's Included
Pressure switch control
4-pole three-phase motor with air and water cooling
Three piston axial pump, with stainless steel pistons
Spray lance, 1050
Integrated fine mesh water filter
Trigger gun, EASY!Force Advanced
High-pressure hose, 10
High-pressure hose, ID 8, 315 bar
High-pressure hose, Premium quality
High pressure lance
Electronic motor protection system with LED display
Oil sight glass
Power nozzle
Servo Control
Brass water inlet fitting
